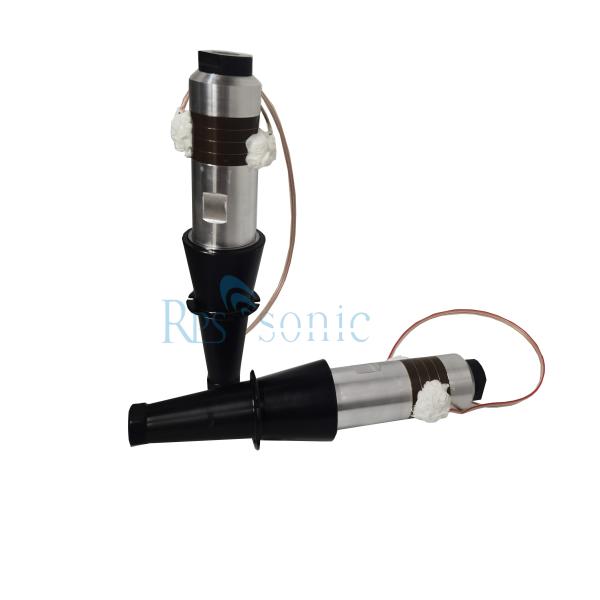

15Khz 2600w Ultrasonic welding transducer for nonwoven welding machine
Parameter
| Item | Parameter |
| Frequency | 14.5~15.1Khz |
| Power | 2600W |
| Impedance | 14 |
| Capatance | 9000~10000pf |
Description
Ultrasonic converter is an energy conversion device that converts high frequency electrical energy into mechanical energy. It is often used in ultrasonic cleaning machines, ultrasonic welding machines, trichlorocarbons, gas cameras and other equipment, and has been widely used in agriculture, industry, life, transportation, military, medical and other fields.
High Mechanical Quality factor and excellent electro-acoustic conversion efficiency, providing high output amplitude.
Piezoelectric element offer a high speed of vibration. Through bolt-on presstress, mechanical and amplitude have been improved.
Having steady output amplitude even under markedly changed loads.
Extended temperature use, ensuring good amplitude linearity. Low resonant impedance ensuring high conversion efficiency.
Bolt-on pre-stressed design provides fast and easy installation with high reliability.
Application
Power Ultrasound Welding Transducer widely applied in powerful ultrasonic welding system. Transducer, in electronics, a device that converts electric energy into some other form of energy, especially the application of mechanical energy in industry is more and more significant.
We mainly supply two kinds of Ultrasonic transducers: NTK type and Branson type. Widely used in ultrasonic welding, ultrasonic cutting, ultrasonic sewing machine, ultrasonic sonochemistry, ultrasonic wire stripping machine, ultrasonic nebulizer,Ultrasonic riveting machine.
Performance Features
Processing technology
It is ground by a grinder. Smooth and flat, and it can be combined with ceramic sheets to ensure its service life. The inner hole of the screw hole is plated with three nickel-chromium and has strong corrosion resistance. The surface of the electrode sheet is polished, and the surface is smooth and fine, which enhances the conductivity. The machine is automatically coated with glue, uniform thickness, good insulation and sealing, no water seepage and rust. Custom fine bolts: high strength, good self-locking, not easy to loose, strong ability to withstand shock, vibration and exchange load.
Evening effect
The aluminum foil test can visually observe the uniformity of the distribution of ultrasonic cavitation.
Clangsonic transducer is designed with unique manufacturing process and strict and reliable test to ensure uniform and efficient work.
Strong cleaning effect
It adopts high-quality ceramic sheets, high Q value, high electro-acoustic conversion efficiency, long service life and consistent output.
Stable performance
Clangsonic has been tested with the transducer under the same conditions. The temperature rises, the average frequency of the clangsonic transducer does not change much, and it is more stable than the transducers of other companies.
Quality assurance
Clangsonic transducer is 100% qualified for each process, and the multi-channel inspection process ensures product performance.
