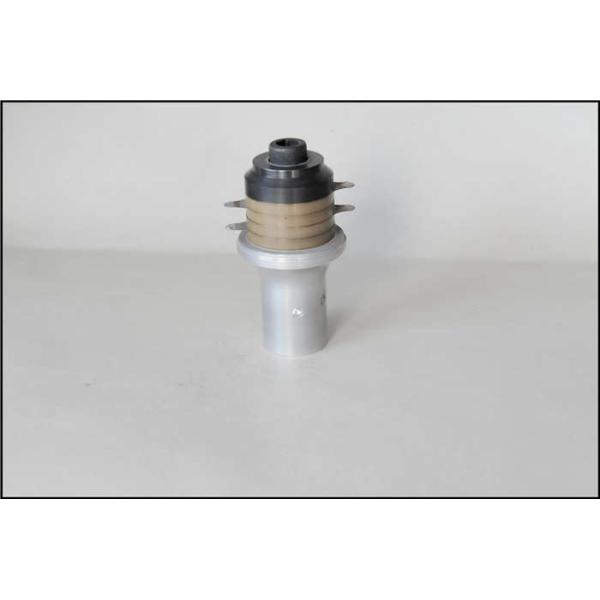

20KHZ Ultrasonic Welding Transducer For Ultrasonic Welding / Sonochemistry
Naming method:
T Transducer
50 The outside diameter for piezoceramic ring (mm)
20 The frequency of the transducer
4 The number for piezoceramic ring,
D The type of transducer D means Chinese type,B-Branson type,Z-NTK type.
Descripersion:
An ultrasonic transducer is a device that converts electrical ultrasonic energy into ultrasound energy, or sound waves above the normal range of human hearing. While technically a dog whistle is an ultrasonic transducer that converts ultrasonic mechanical energy in the form of air pressure into ultrasonic sound waves, the term is more apt to be used to refer to ultrasonic piezoelectric transducers that convert electrical energy into ultrasound.
Piezoelectric crystals have the property of changing size when a voltage is applied, thus applying an alternating current (AC) across them causes them to oscillate at very high frequencies, thus producing very high ultrasonic frequency sound waves.
The location at which a ultrasonic transducer focuses the ultrasound can be determined by the active ultrasonic transducer area and shape, the ultrasound frequency, and the ultrasonic sound velocity of the propagation medium.
20Khz transducer Parameter datasheet
| Item No. | Connect screw (Size) | Capacitance | Input power (W) | Max. Amplitude (um) |
| | | Yellow | Grey | Black | | |
| 5520-4Z | M18 X 1 | 10000-11000 | 10500-11500 | 14300-20000 | 2000 | 8 |
| 5020-6Z | M18 X 1.5 | 18500-20000 | / | 22500-25000 | 2000 | 8 |
| 5020-4Z | M18 X 1.5 | 11000-13000 | 13000-15000 | 15000-17000 | 1500 | 8 |
| 5020-2Z | M18 X 1.5 | 6000-6500 | 6500-7000 | 8000-9000 | 800 | 6 |
| 4020-4Z | 1/2-20UNF | 9000-10000 | 9500-11000 | / | 900 | 6 |
| 4020-2Z | 1/2-20UNF | / | 4800-5500 | / | 500 | 5 |
| 5020-4DS | 1/2-20UNF | 11000-12000 | 12000-13500 | / | 1300 | 8 |
| 5020-4D | 1/2-20UNF | 11000-12000 | 12300-13500 | 13600-14600 | 1500 | 8 |
| 5020-6D | 1/2-20UNF | 20000-22000 | / | 25500-26500 | 2000 | 10 |
| 4020-6D | 1/2-20UNF | 13500-15000 | / | / | 1500 | 10 |
| 4020-4D | 1/2-20UNF | 8500-10500 | 10000-11000 | 10500-11500 | 900 | 8 |
| 3020-6D | 3/8-24UNF | 8000-9000 | / | / | 600 | 9 |
20Khz Ultrasonic welding transducer widely used in ultrasonic welding and ultrasonic liquid processor. Piezoelectric transducer is the electric charge that accumulates in certain solid materials in response to applied mechanical stress. It is key point of all ultrasonic equipment.The transducer decide the property of the machine.We can supply transducer, also transducer with house and booster.
versatile range of high power and high efficiency ultrasonic converters of the well known half-wave design, Each resonator system comprises a prestressed metal/piezoelectric ceramic/metal sandwich, especially suitable for high power plastic welding, ultrasonic machining and ultrasonic liquid processing.
Features
- Poreless, high-density piezoceramics
- Mechanically very strong and stable.
- High mechanical quality factor
- Excellent electro-acoustic conversion efficiency
- Minimal thermal dissipation and power losses
- High output amplitudes
